Detection and location of refrigerant gas leaks in HVAC/R systems
-
Accurate leak verification in air conditioning and refrigeration systems
-
Inspection of circuits using nitrogen-hydrogen mixtures
-
Testing in hard-to-reach areas thanks to the flexible probe
-
Use in workshops and during technical maintenance operations

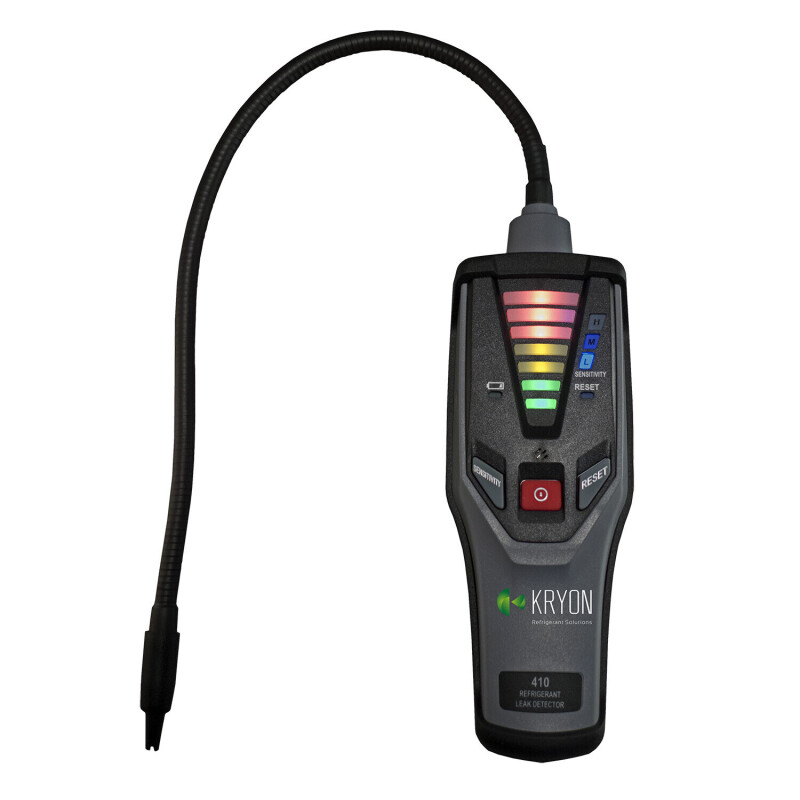

Kryon Heated Diode Leak Detector
The Kryon® Heated Diode Leak Detector is a portable electronic leak detector designed to identify refrigerant gas leaks and nitrogen-hydrogen mixtures with a sensitivity of up to 3 grams/year. Ideal for HVAC/R technicians, it allows for quick and reliable inspection of air conditioning and refrigeration systems.
Description
This electronic leak detector with heated sensor uses a microprocessor and a semiconductor sensor to provide accurate and realistic detection signals. It is capable of identifying even very small leaks, thanks to adjustable sensitivity and a 7-LED tricolor visual scale that gives an immediate indication of the presence of gas.
The device is designed to detect a wide range of refrigerant gases (including HFCs, HFOs, 1234yf, and blends), as well as nitrogen-hydrogen mixtures (commonly used for pressure testing). The 40 cm flexible stainless steel probe facilitates access to critical points in the system.
The package includes a 220 V power adapter with MicroUSB output, allowing the device to be powered directly; the AA alkaline batteries required for operation are not included. The unit is supplied with a calibration certificate issued by an accredited laboratory, which can also be used for F-Gas certification purposes.
Technical features
Heated diode semiconductor sensor for detecting refrigerant gas leaks and nitrogen-hydrogen mixtures.
Sensitivity: approximately 5 ppm (3 grams/year) for detecting micro-leaks.
Stainless steel flexible probe: length ≈ 40 cm, for easy access to critical points.
Operating temperature: 0 °C to 40 °C.
3 adjustable sensitivity levels to adapt to working conditions.
7-LED tricolor visual indicator for progressive gas presence signaling.
Detectable gases: R134a, R1234yf, R410A, R404A, R407C, R449A, R452A, A2L blends, R32, as well as hydrocarbons such as R600a and R290 (technically detectable).
Compliance: SAE J1627 CE.
Power supply: 4 AA alkaline batteries (not included) or via 220 V/50 Hz → MicroUSB adapter (included).

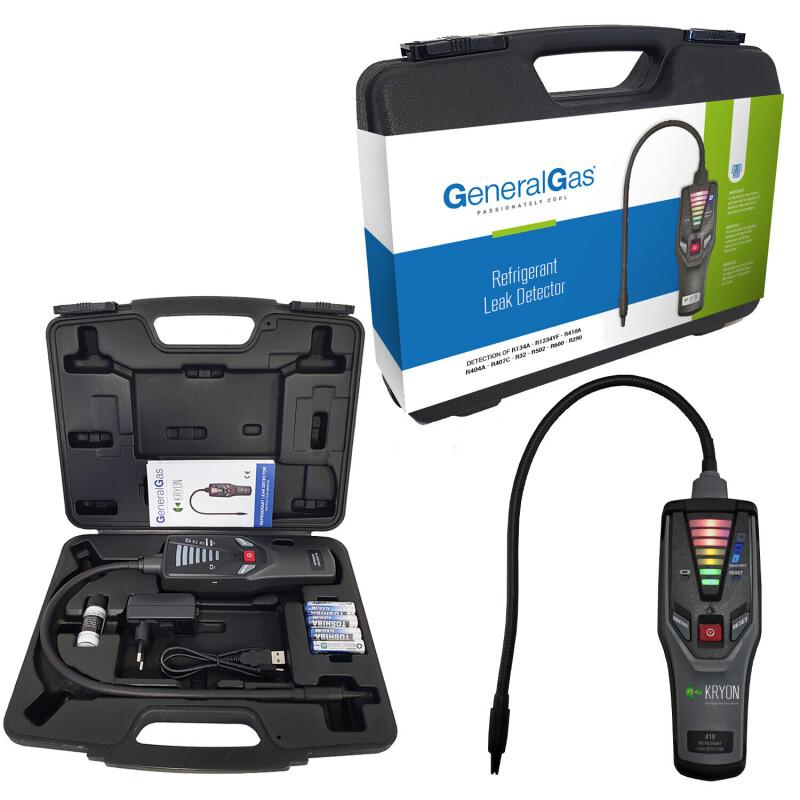

Plastic carrying case for storage and transport.
Calibration certificate included, issued by an accredited laboratory.
Approximate weight with batteries: 418 g.
Applications
Available documents
Related products
Measuring and diagnostic instruments
Measuring and diagnostic instruments
Measuring and diagnostic instruments
Measuring and diagnostic instruments
FAQ
PFAS are a large family of fluorinated chemicals characterized by high stability and environmental persistence, making them subject to potential regulatory restrictions in Europe. Some fluorinated refrigerants used in HVAC/R systems fall within the chemical definition of PFAS, which is why the regulatory debate directly affects the refrigeration and air conditioning sector.
The F-Gas Regulation already regulates the use of fluorinated refrigerants through progressive GWP limits and a gradual reduction in available quotas. The potential introduction of restrictions on PFAS risks creating regulatory overlap, adding further constraints on substances already regulated by the F-Gas framework.
If applied indiscriminately, restrictions on PFAS could reduce the availability of some refrigerants and impact system design. Therefore, the European debate is exploring solutions that keep refrigerants within the F-Gas regulatory framework, thus ensuring a gradual and sustainable technological transition for the HVAC/R sector.
