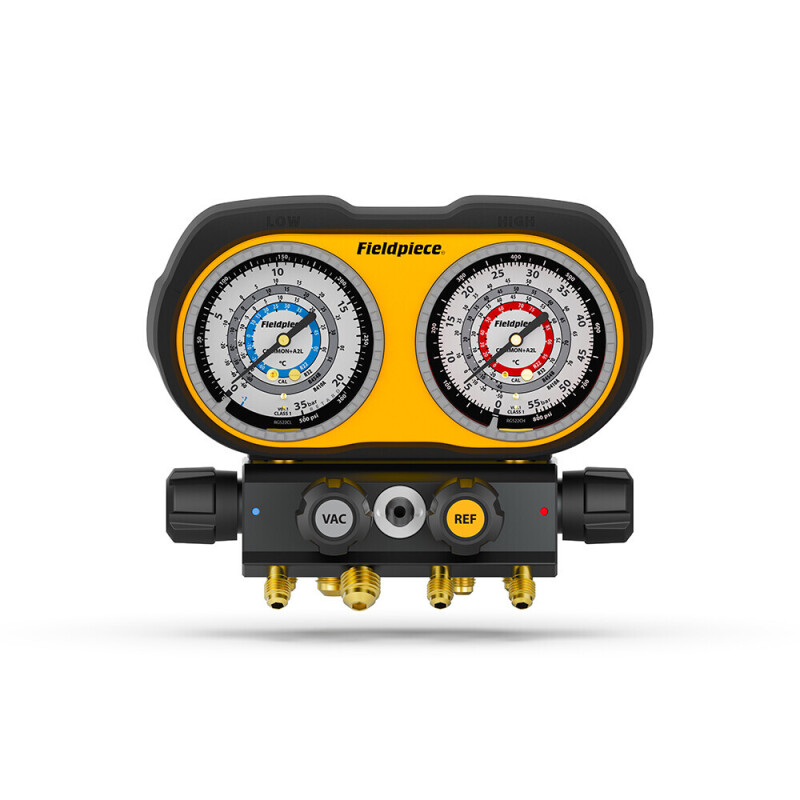

Fieldpiece GS422C / GS434C / GS429C 4-Port Analog Manifold Gauge Sets

The Fieldpiece GS Series represents a comprehensive pressure measurement solution for HVAC/R systems, featuring a design engineered for intensive professional use. All models are equipped with a 4-port analog manifold, allowing for the simultaneous management of multiple service lines during system charging, recovery, evacuation, and diagnostics.

The manifold body features a rugged, leak-proof construction designed to withstand vibrations, impacts, and harsh operating conditions. The large-diameter analog gauges ensure quick and precise readings even in low-light environments or on the job site. High-smoothness piston valves provide fluid refrigerant flow control and superior durability compared to traditional systems.

Model Specifications:

• GS429C: Dedicated to Class A3 flammable refrigerants, ideal for hydrocarbon-based systems such as propane and isobutane.

• GS434C: Designed for commercial and industrial refrigeration systems, compatible with both traditional and next-generation refrigerants.

• GS422C: Engineered for residential and commercial A/C applications, covering the most widely used refrigerants in the HVAC sector.

All sets are supplied with a professional heavy-duty carrying case, protecting the instrument during transport and facilitating equipment organization in the workshop or service vehicle.

Key Technical Features:

• 4-Port Analog Manifold Configuration: For simultaneous management of high-pressure, low-pressure, and service lines.

• Large-Diameter Gauges (approx. 80 mm): Features clear scales and integrated high-impact boots.

• Sealed Manifold Body: Reduces refrigerant leaks and improves operational reliability.

• Professional Piston Valves: For smooth regulation and long mechanical life.

• Reinforced Structure: Designed for heavy-duty use in HVAC/R environments and job sites.

• High Pressure Resistance: Overload capacity up to approximately 3000 psi (206 bar).

• Heavy-Duty Case Included: For secure transport and instrument protection.

• Standard Compatibility: Works with standard hoses and fittings for quick system connection.

Fieldpiece GS429C – A3 Refrigerants (Flammable)

Optimized for hydrocarbon-based systems:

• R290 (Propane)

• R600a (Isobutane)

• R1270 (Propylene)

• R600 (Butane)

• Ideal for: Eco-friendly applications and low-GWP (Global Warming Potential) systems.

Fieldpiece GS434C – Commercial Refrigeration

Compatible with refrigerants used in cold rooms and commercial plants:

• R134a

• R407C

• R404A

• R448A

• Ideal for: Maintenance, charging, and pressure monitoring on professional refrigeration systems.

Fieldpiece GS422C – A/C Air Conditioning

Designed for residential and commercial air conditioning systems:

• R410A

• R454B

• R32

• R22

• Ideal for: Standard HVAC service and next-generation systems.
