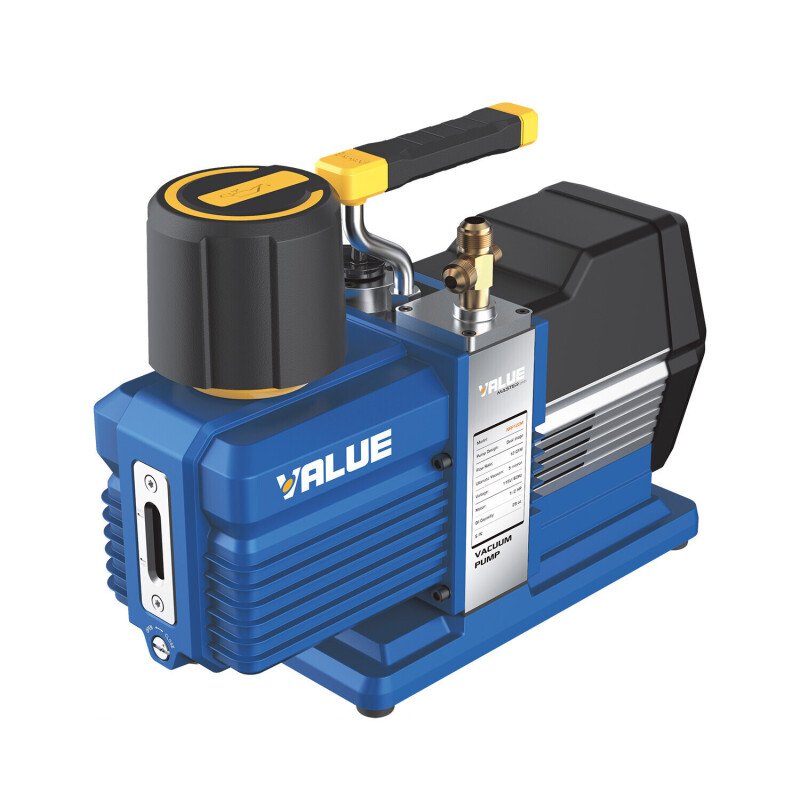

VALUE VRP‑15D Dual-Stage Vacuum Pump 425 L/min

The VALUE VRP‑15D is engineered with advanced industrial technology and high-quality components, delivering some of the highest vacuum performance in its class. It reduces evacuation times and efficiently removes moisture and unwanted gases from refrigeration and air-conditioning circuits.

The dual-stage rotary design, combined with a 3/4 HP DC motor and electronic starter, ensures consistent power and smooth start-up, even during intensive use in workshops or on-site. The pump features an anti‑oil‑backflow system that prevents oil from flowing back into the circuits in case of power interruption, enhancing safety and reliability.

A high-performance oil mist filter and a large oil sight glass simplify maintenance and allow visual monitoring of operational status, while standard SAE connections make the VRP‑15D compatible with most HVAC/R systems. This pump is ideal for evacuating commercial refrigeration systems, large central air-conditioning installations, and other applications requiring high-efficiency vacuum performance.

• High evacuation performance: nominal flow rate of approximately 425 L/min (≈ 25.5 m³/h) for fast evacuation even on large-capacity systems.
• Dual-stage rotary design: enables an ultra-deep vacuum down to 5 microns (0.0067 mbar / 0.67 Pa / 0.005 Torr), ideal for removing moisture from refrigeration circuits.
• High-performance electric motor: equipped with a 3/4 HP DC motor with electronic starter for controlled start-up and stable operation.
• Integrated oil backflow prevention system: prevents contamination and oil return into the circuit during power interruptions or sudden stops.
• High-efficiency oil mist filter: reduces oil particle emissions and improves operational quality.
• Large oil sight glass: allows easy visual monitoring of lubrication status.
• Standard SAE fittings: ¼″, 3/8″, and ½″ SAE inlets for versatile connections with HVAC/R piping and accessories.
• Oil reservoir capacity: approximately 880 ml for consistent lubrication during extended operation.
• Compact dimensions and balanced weight: approx. 414 × 152 × 310 mm and 15 kg, facilitating placement and use in the field.

This vacuum pump is ideal for:

• Deep evacuation of refrigeration circuits and HVAC/R systems before refrigerant charging;

• Evacuation of large-capacity commercial refrigeration systems;

• Evacuation of centralized air-conditioning systems and other complex HVAC installations;

• Professional use in workshops, field service, and intensive maintenance operations.

Key features:

• Ultra-deep vacuum level (5 microns) for highly effective evacuation;

• High flow rate for reduced evacuation times;

• Oil backflow prevention system for enhanced safety;

• Robust construction, suitable for professional use;

• Compatible with a wide range of HVAC/R installations.
