VALUE VES50A / VES100A Refrigerant Charging Scales

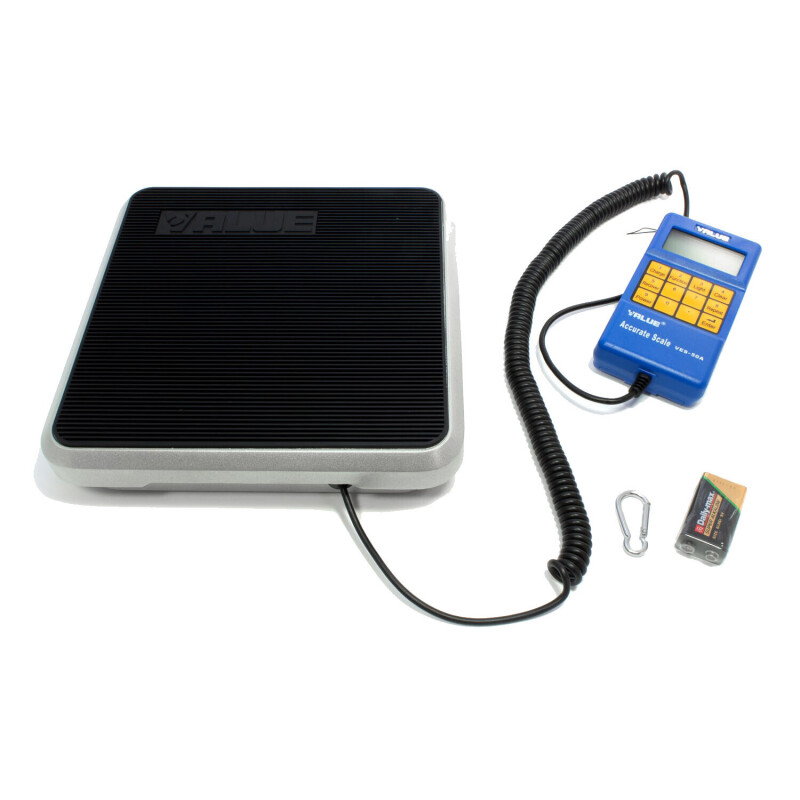

The VALUE VES-A series scales are electronic instruments designed to facilitate the precise weight measurement of refrigerant gases in cylinders or tanks during charging or recovery operations. Both models feature a rugged metal weighing platform, a remote control terminal with a detachable cable, and a large LCD display that provides readings in multiple units (kg, lb, lb./oz.).

The 50 kg model offers a higher resolution of 2 g, making it ideal for operations involving smaller quantities of refrigerant, while the 100 kg model features a 5 g resolution, suitable for larger charges. Both models guarantee an accuracy of up to ± 0.05% F.S., delivering stable and repeatable measurements for professional use.

The scales are powered by a 9V alkaline battery (with an approximate runtime of ~60 hours) and are supplied in a heavy-duty plastic carrying case for easy transport and protection on the move. Additionally, a declaration of conformity with a serial number is included, essential for traceability and corporate quality requirements.

• Electronic Charging & Recovery Scale: Designed for refrigerant gas management with a wired remote control and LCD display.

• Rugged Construction: Heavy-duty metal platform, stable and engineered for professional field use.

• Maximum Capacity & Performance:

  • VES-50A (50 kg / 110 lbs): 2 g resolution, ±0.05% F.S. accuracy.

  • VES-100A (100 kg / 220 lbs): 5 g resolution, ±0.05% F.S. accuracy.

• Selectable Units: Easy switching between kg, lb, and lb/oz.

• Power Supply: 9V alkaline battery providing up to 60 hours of runtime with an Auto Power Off (APO) function.

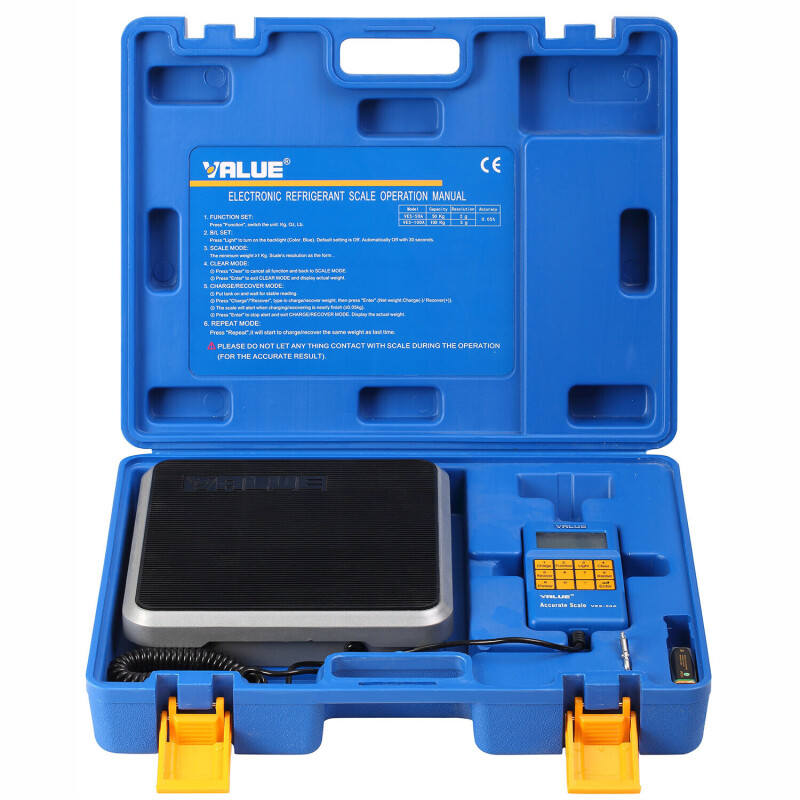

• Protective Carrying Case: Heavy-duty hard case included for secure transport and instrument protection.

• Platform Dimensions: Approx. 237 × 237 mm, compact and versatile for various cylinder sizes.

• Total Weight: Approx. 5 kg (including carrying case).

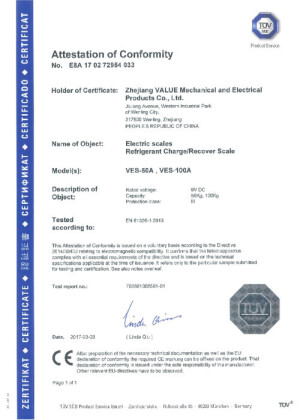

• Compliance & Traceability: Declaration of conformity and unique serial number included.

• Refrigerant Charging: Used for air conditioning systems, heat pumps, and both industrial and commercial refrigeration units.

• Refrigerant Recovery: Weighing gas extracted from systems during maintenance, decommissioning, or disposal.

• Charge Monitoring and Compliance: Controlling and monitoring refrigerant charges to ensure compliance with technical specifications and environmental regulations (such as F-Gas).

• Diagnostics and Preventive Maintenance: Assessing gas quantities before and after service interventions to evaluate system performance.

• Professional HVACR Service: Ideal for workshops and technical assistance centers, serving professional installers and maintenance technicians.
