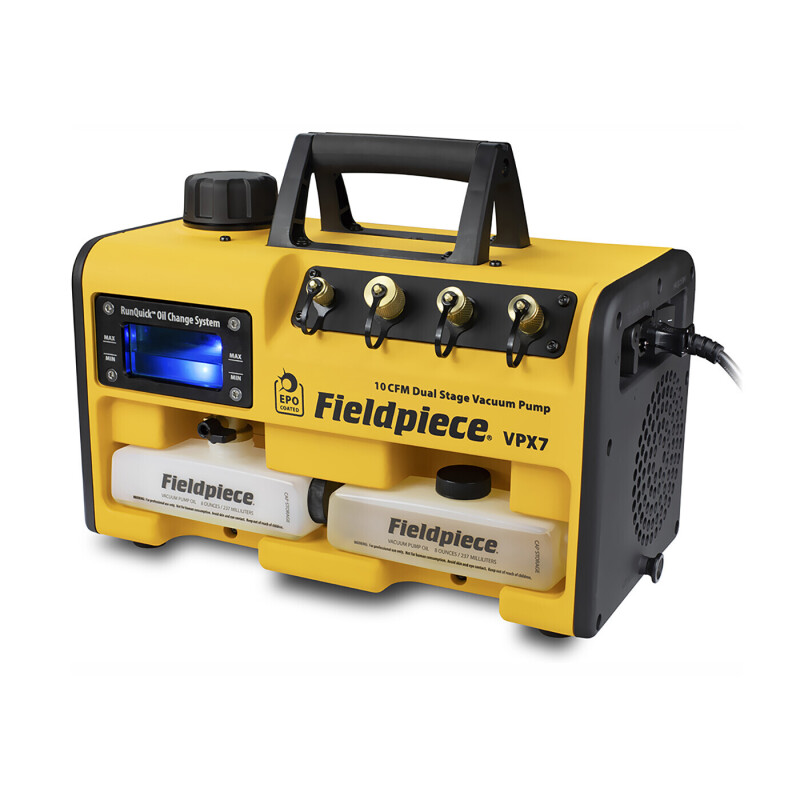

Fieldpiece VPX7 Vacuum Pump – 283 L/min (17.0 m³/h)

The Fieldpiece VPX7 INT is designed for professional HVAC/R applications, where high performance and user-friendly features are essential. With a high flow rate of approximately 283 L/min (10 CFM), it can evacuate medium to large-capacity systems quickly and efficiently, improving job-site productivity.

A standout feature is the RunQuick™ oil change system, which allows the pump oil to be replaced in seconds, even while the pump is running, without losing vacuum or interrupting the evacuation process. This makes maintenance faster, cleaner, and more convenient compared to traditional pumps.

The oil reservoir is equipped with blue LED backlighting, providing a clear visual indication of oil status and overall pump health. The wide, stable base reduces the risk of tipping and prevents oil spills, making field use safer.

The VPX7 includes four inline ports (¼″, two 3/8″, and ½″) for easy, organized connection of multiple service hoses without clutter or tangling.

Additionally, a gas ballast valve enhances pump performance in the presence of vapors and moisture, preventing internal condensation during compression. The integrated anti-oil suck-back system prevents pump oil from flowing back into hoses or the HVAC/R system when the unit stops, protecting connected components.

• High Suction Capacity: The pump delivers approximately 283 L/min (17.0 m³/h / 10 CFM), enabling fast evacuation even on large systems.

• Deep Vacuum Capability: Achieves a final vacuum of approximately 15 microns (0.02 mbar / 2 Pa), essential for thorough system preparation before refrigerant charging.

• RunQuick™ Oil Change System: Allows pump oil to be changed in seconds while the unit is running, without losing vacuum or interrupting work.

• Backlit Oil Reservoir: Equipped with integrated blue LED for easy monitoring of oil status and operational efficiency.

• Four Inline Ports: Includes ¼″, 3/8″, and ½″ SAE ports for easy connection of multiple service hoses.

• Gas Ballast Valve: Manages vapors and improves pump performance during evacuation cycles.

• Anti-Oil Suck-Back System: Prevents oil from flowing back into hoses or the HVAC/R system when the pump is turned off.

• Robust and Stable Construction: Wide base minimizes tipping risk and ensures operational stability.

• Refrigerant Compatibility: Designed for use with modern refrigerants, including A2L-class refrigerants like R32 (with appropriate safety and regulatory precautions).

• Professional-Grade Build: High-efficiency motor and durable components for intensive HVAC/R use.

The Fieldpiece VPX7 INT is ideal for evacuating commercial and industrial refrigeration systems, residential and commercial air conditioning units, HVAC/R maintenance tasks, and any operation requiring a deep, controlled vacuum prior to refrigerant charging.

GeneralGas is the official Italian distributor of Fieldpiece products, providing local support, qualified assistance, availability of original spare parts, and specialized technical consultancy across the full range of Fieldpiece USA equipment.
